Semi-Flexible Long Stem Air Probe

Part No: AK25M (3058511)

£138.70 (ex. VAT)

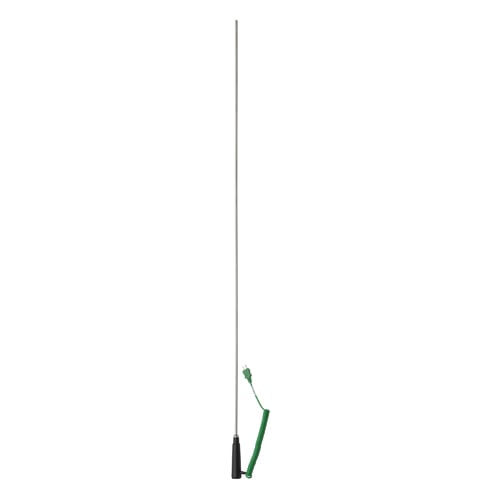

The AK25M Semi-Flexible Long Stem Air Probe has a Type K Thermocouple sensor and is designed for measuring temperatures of up to +1100°C (+2012°F). It is fitted with a 1m curly cable and has a 1m long stem.

  • Temperature Range: -100°C to +1100°C / -148°F to +2012°F
  • Sensor Type: Type K Thermocouple
  • Connector Type: 2-Pin Sub-Miniature



SAVE 30% – Add discount code 'BLACKFRIDAY' to basket




AK25M Semi-Flexible Long Stem Air Probe

Semi-Flexible Long Stem Air Probe

The AK25M Semi-Flexible Long Stem Air Probe has a Type K Thermocouple sensor and is designed for measuring temperatures of up to +1100°C (+2012°F). It is fitted with a 1m curly cable.



AK25M (2)



The AK25M Semi-Flexible Long Stem Air Probe is fitted with a 2-Pin Sub-Miniature connector, to provide a quick and easy connection to your Thermometer.



Technical Specifications

NameValue
Sensor TypeType K Thermocouple
Connector Type2-Pin Sub-Miniature
Temperature Measurement Range-100°C to +1100°C / -148°F to +2012°F
Response Time3.0 seconds
Stem Length1000mm
Stem Diameter6.0mm
Lead Length1.0m
Lead MaterialPVC
ComplianceTolerances relate to BS EN60584-2 (1993) Class 1

*You will need to Sign In to view additional content

*You will need to Sign In to view additional content

Documentation

*You will need to Sign In to view additional content

Part No: AK27M (3058548)

General Purpose Air Probe

The AK27M General Purpose Air Probe is a Type K Thermocouple Probe which is designed for measuring temperatures of up to +250°C / +482°F, fitted with a 1m curly cable.

  • Temperature Range: -100 to +250°C / -148 to +482°F
  • Sensor Type: Type K Thermocouple
  • Connector Type: 2-Pin Sub-Miniature

Part No: AK24M (3058509)

Semi-Flexible Air Probe

The AK24M has a Type K Thermocouple sensor and is designed for measuring temperatures of up to +1100°C / +2012°F, fitted with a 1m curly cable.

  • Temperature Range: -100°C to +1100°C / -148°F to +2012°F
  • Stem Length: 700mm
  • Stem Diameter: 6mm
