Diligence WiFi Air Probe Plus (3m Lead)Part No: RFAX300PLUS (4823853)
£63.86 (ex. VAT)
TheÂ RFAX300PLUS Diligence WiFi Air Probe Plus (High Accuracy 'Plus' SpecificationÂ Thermistor) is a high accuracy damped air probe for use with the RF312GLYCOLÂ and RF312DUALPLUSÂ Diligence WiFi Temperature Data Loggers only.
- Temperature Range:Â -40Â°C toÂ +70Â°C / -40Â°F to +158Â°F
- Sensor Type: PST (Thermistor)
- Connector Type:Â 3.5mm Jack Plug
- Warranty: 6 Months
Diligence WiFi Air Probe Plus
The RFAX300PLUS Diligence WiFi Air Probe Plus (High Accuracy ‘Plus’ Specification Thermistor) is a damped high accuracy air probe for use with the RF312GLYCOL and RF312DUALPLUS Diligence WiFi Temperature Data Loggers only. The probe is connected to a 3.0m lead.
The RFAX300PLUS Diligence WiFi Air Probe Plus is fitted with a 3.5mm Jack Plug connector, to provide a quick and easy connection to your Data Logger.
Note: This Probe is NOT compatible with the RF312-TP Logger. Please click here for probes for that Logger.
Air Probes Explained
It is fair to say, that any probe that can measure temperature, could be used as an Air Probe, with varying degrees of success. However, Air Probes are specifically designed for this purpose and so have a higher degree of accuracy and response.
Air Probes are often designed to be very quick response with a low thermal mass. The sensor is designed to be as small as possible so that the air temperature is transferred to the probe with minimal temperature loss or gain to maintain a high degree of accuracy.
That said, all Comark Air Probes for the RF312xx Diligence WiFi Temperature Data Logger are inherently designed to be slow. Why is this? Read on to find out….

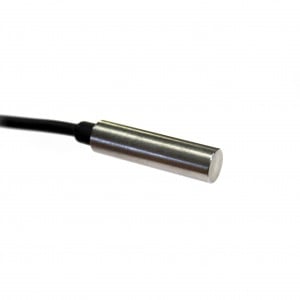

We supply a Damped Air Probe style for the RF312xx Diligence WiFi Temperature Data Logger, which comes in the form of a small stainless steel bullet shaped end, see picture.
This type of construction has two purposes;
- It protects the sensor from physical damage
- It slows the response of the probe down significantly
In certain scenarios, it is beneficial to have a slower response to changes in air temperature, hence having a Damped Air Probe. For example, when you place a probe inside a fridge or freezer, you probably don’t want an alarm going off every time someone opens the door.
The Damped Air Probes do a good job of reflecting the samples in the fridge. As the RF312xx Diligence WiFi Temperature Data Logger is your early warning notification for any alarms, it would be unsuitable if ‘false alarms’ were constantly being raised.
All RF300 Diligence WiFi System Air Probes are fitted with a 3.5mm Jack Plug Connector and a stainless steel Damped Air Probe end, as shown below.
|Connector Type||3.5mm Jack Plug|
|Sensor Type||PST (High Accuracy 'Plus' Specification Thermistor)|
|Temperature Range||-40°C to +70°C / -40°F to +158°F|
|System Accuracy with Comark Thermometer||±0.5°C -20°C to +70°C / ±0.9°F -4°F to +158°F|
