WiFi Dual Channel Data Logger with Thermocouples

Part No: RF314Dual (4808985)

The RF314Dual Diligence WiFi Dual Channel Data Logger with two removable Thermocouple probes can measure two Air or Product Temperatures with a single logger. Data is transmitted wirelessly via your WiFi network to the Comark Cloud.

  • Temperature range: -454°F to +2501°F / -270°C to +1372°C (probe dependent)
  • Simple installation using your existing WiFi network

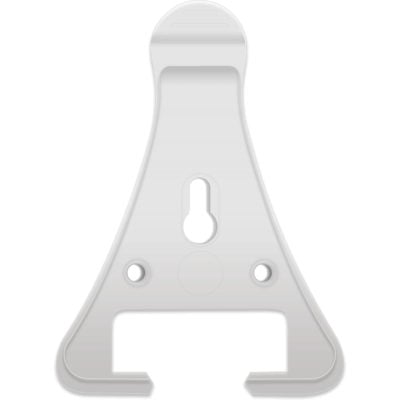

  • Supplied with two removable 3m thermocouple probes, a micro USB lead and wall bracket
  • Comark Cloud charges apply
  • Warranty: 1 Year



WiFi Dual Channel Data Logger with Thermocouples

The RF314Dual WiFi Dual Channel Data Logger with Thermocouples provides dual channel recording through two external thermocouple probes.

The RF314Dual data logger measures the temperature of the environment in which the probes are situated. This data logger is typically accurate to ±1.5°C (with the K type probes supplied). It is freestanding, but can be attached to a wall or surface using the bracket provided and can be clipped in and out as required. The probes are connected using the industry standard miniature thermocouple connector, which allows alternative K, N, J and T type probes to be used.

The Thermocouples can be used in a wide range of extreme temperature situations e.g. manufacturing processes, cold storage and hot storage.

Data is streamed wirelessly to either the Comark Cloud or a local PC. If the data logger temporarily loses connectivity with the network, it will log readings until the connection is re-established (max 30 days at 10 second sample interval).

The Comark Cloud Dashboard is your new online Home for your Loggers and provides easy access to the critical information regards your system, including; the status of your favourite devices at a glance, review recent device events, view data and clear alerts, quickly navigate to the detail on all your devices.

Simply log on to the Comark Cloud Dashboard via your PC, Tablet or Phone.

Setup your loggers quickly and easily with the free PC software, after which all configuration is handled from the Cloud. See the Downloads section, under the Support Tab.

Although the Diligence WiFi data loggers have an impressive range this can be increased by using WiFi extenders.

The RF314Dual WiFi Dual Channel Data Logger with two Thermocouple Probes, is a low power device containing a rechargeable battery. When configured, the data logger can operate for up to six months*. The battery can be recharged via a standard +5V wall adapter RF320 (UK/US) or a USB port using the cable provided.

The LCD display includes several features including Max and Min readings and indicators for battery state, alarms, WiFi connection and signal strength.


Diligence_Wifi_Logo

From the Comark Cloud Dashboard you can change the data logger’s settings to suit your needs, options include;

  • Assigning names to the data logger and each measuring channel
  • Selecting the units of measurement
  • Choosing the sample rate and transmission period
  • Setting high and low alarm levels for each channel
  • Manage Users and Locations

Enjoy an Audit Trail, with detailed reporting, data exporting and notification options, including e-mails and SMS**

The RF314-TH has a protection rating of IP40 and the probes IP67. The data logger is IEEE 802.11b/g/n compliant, supports WEP, WPA/WPA2 encryption and enterprise networks***.


Features

  • Measurement range -454°F to +2501°F / -270°C to +1372°C
  • Rechargeable internal lithium polymer battery
  • Initial set-up of the data loggers via the free, easy-to-use PC software application
  • Dual channel recording through two external thermocouple probes
  • Wirelessly stream and view data on the Comark Cloud
  • View and analyze multiple sensors, including graphing of historic data
  • Configurable high and low alarms with indicator
  • Data Logger memory stores all data even if WiFi is temporarily disconnected
  • Fully featured LCD display
  • Simple, single button operation
  • Low battery indicator
  • WiFi connection indicator
  • USB port used for recharging (can only be recharged when the unit is between 0 to +40°C / +32 to +104°F)
  • Supplied with removable High Accuracy thermistor probes, micro USB lead and Wall Bracket

*** MS-CHAPv2, PEAP, EAP-FAST, EAP-TTLS

**SMS via E-mail to SMS service such as TextMagic™ (www.textmagic.com)

*Battery Life and Power Supply
The product will arrive partly charged, but ideally you should charge it for 24 hours before use for optimum performance. The battery can be recharged (unit must be between 0°C to +40°C / +32°F to 104°F) via a PC, a USB +5V wall adapter RF320 (UK/US), or a portable USB battery pack using the USB lead provided. It can also be permanently powered by the RF320 USB wall adapter. Readings may be affected while the internal battery is being charged. However, once charged, continued connection of the charger will have no effect.

Battery life is dependent on: transmission period, WiFi encryption method, WiFi encryption key rotation frequency (determined by the router/access point), signal strength between router/access point and WiFi device, presence volume and type of WiFi traffic from other devices, sample rate and operating temperature.

For more information on Battery and WiFi Considerations please read our Product Information Bulletin for RF300.

Please contact us if you want more information on the battery life of RF300 Transmitters and how to maximise it.

Apply for a Comark Cloud Account Today!


Technical Specifications

NameValue
Sensor TypeThermocouple
Battery LifeTypically *3-6 Months
USB Supply Voltage (Typical)4.5 to 5.5 Vdc
Temperature Measurement Range-270°C to +1372°C / -454°F to +2501°F
Operating Temperature Range-20°C to +60°C / -4°F to +140°F
Temperature accuracy (Logger Only)±1.5°C / ±3.0°F
Temperature Measurement Resolution0.1°C / 0.2°F
Temperature Display Resolution0.1°
Logging Period (User Configurable)10 seconds to 12 hours (Typical 10 minutes)
Transmission Period (User Configurable)1 minute to 24 hours (Typical 1 hour)
Logger DimensionsHeight 82mm / 4" x Width 70mm / 3" x Depth 36mm / 1"
WiFi ComplianceIEEE 802.11b/g/n compliant, supports WEP, WPA/WPA2 encryption and enterprise networks (MS-CHAPv2, PEAP, EAP-FAST, EAP-TTLS)
Supported ProbesK,N, J and T Type Probes with 2-Pin Sub Miniature Connector
Supplied Probe Dimensions1.5m Cable, 75mm x 5mm Shaft
Supplied Probe Measurement Range-40°C to +200°C / -40°F to +392°F
Supplied Probe Accuracy+/-2.5°C
Warranty1 Year

*You will need to Sign In to view additional content

Documentation

Downloads

 NameVersionSizeDate
Diligence WiFi Pro Software (for use with Comark Cloud)1.40.1064.21 MB28th November 2018
RF314Dual Firmware (For ‘B’ loggers bought pre-July 2016)3.2958.19 KB28th July 2016
RF314Dual Firmware (For ‘B/G/N’ loggers bought post-July 2016)5.021.07 MB30th July 2018

Articles / FAQs

NameDate
Help with Troubleshooting Common Issues

Help with Troubleshooting Common Issues

This knowledge base article is a step-by-step problem solver, addressing some of the most commonly encountered problems and issues when setting up and using the RF300 Diligence WiFi Devices.


WiFi Device will not connect to the PC via USB

You have the RF300 Diligence Sensor Software downloaded and installed on your PC. You’ve run the software and connected the WiFi Device to the PC using the USB cable provided but the software does not recognise connection of the Device.

  • Unplug the USB cable and reconnect
  • Sometimes USB cables can fail, if possible try another USB cable
  • There may be a difference between the USB ports on your PC, try another USB port
  • Restart the PC and reopen the WiFi Sensor Software

If the above has not resolved the problem please try the options below..

  • Restart the WiFi Device by holding the button for 10 seconds (Unit flashes ‘LOW’ battery symbol or shows rSt)
  • Factory reset the WiFi Device by holding the button in for 20 seconds (Unit shows FArS)
  • Unplug any unnecessary USB devices

If the above has not resolved the problem please try the options below….

  • Check that the Device appears in Device Manager when connected via USB.
  • You should see a COM Port labelled ‘STMicroelectronics’. Check that is it is not disabled and showing as working normally.

GT01

  • If the Device is listed but not working please reinstall the software.

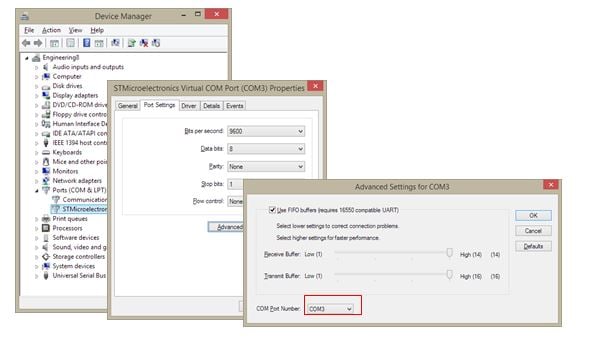

  • Change the COM port number. To change the COM port go to Control Panel, Hardware and Sound, Device Manager, Ports, STMicroelectronics Virtual COM port, Port Settings, Advanced and then select a COM port from the drop down menu that is not in use. Windows Vista and XP may differ.

GT02

  • If you have tried all of the above but the Device is still not recognised by your PC please contact your supplier.




Connecting to wireless networks

My wireless network does not appear in the list during setup

  • Refresh the network list

GT03

  • The WiFi Device may be out of range of the access point or router – move the Device closer
  • The wireless network name (SSID) for your network may be hidden – select Other Network and enter the parameters manually
  • Restart your access point or router
  • For Loggers sold before July 2016 – Your wireless network may not support the required 802.11b data rates – check configuration of your access point or router.  Refer to Comark RF300 PIB Help with Network Requirements and Settings.
  • On rare occasions the SSID may contain invalid characters which can stop it from being displayed.  Refer to the knowledge base article Help with Network Requirements and Settings.

If you have tried all of the above but the wireless network still does not appear in the list, please contact your IT Administrator or supplier




My wireless network appears in the list but the WiFi Device fails to connect

  • Have you selected the correct wireless network?  There may be multiple networks with the same name (SSID).  If necessary check the MAC Address of your access point or router against that shown in the list of networks.

GT04

  • Check that password being entered is correct – don’t forget it is case sensitive
  • The WiFi Device may be out of range of the access point or router – move the Device closer
  • If the wireless network uses WEP Encryption, ensure that the HEX key is being entered rather than the password. Online converters are available.  The passkey consists of a string of characters A-F and numbers 0-9.
  • Does your password contain any punctuation or special characters? Most punctuation is fine but some characters, particularly spaces and commas cannot be handled by the WiFi Sensors.  Try changing the password to remove any special characters.

If the above has not resolved the problem please try the advanced options below

  • If the PC has two network connections you may need to manually select the network which will be used to communicate with the WiFi Devices.  Refer to the knowledge base article Help with Network Requirements and Settings for further information.
  • If there are multiple access points with the same SSID you may need to manually select the individual access point.  Refer to the knowledge base article Help with Network Requirements and Settings for further information.
  • Ensure MAC address filtering on the access point or router is either disabled or the WiFi Device is in the allowed list.
  • If you are using a DHCP service to allocate IP Addresses on your network (this is normally the case) check that you have not reached the limit on the number of IP Addresses.  If necessary refer to your IT Administrator.
  • If you are running the software on a Virtual Machine, it must be allocated an IP address in the same range as the physical PC.
  • If the network requires you to log in on a web page after association, the WiFi Device will not be able to communicate using it.




Failure to complete the setup process

My WiFi Device fails to save settings when setting up on the PC

GT_05

  • Make sure that the Firewall on the PC allows full access to WiFi Sensor Software – Refer to the knowledge base article Help with Windows Firewall.
  • If your PC has multiple network connections this may prevent communication with the WiFi Device.  If possible disconnect any networks other than the one which the WiFi Device is connected to.  Refer to the knowledge base article Help with Network Requirements and Settings for further information.
  • Some wireless networks are configured in ‘Isolation’ mode which must be disabled to allow communication between the WiFi Device and the PC.  This will normally be found in the advanced settings of the access point or router.  Guest networks will also prevent communication with other devices on the same network.
  • The Comark RF300 Diligence WiFi Devices use UDP packets on ports 1024 and 8010, it may be necessary to open these up to allow communication.

My WiFi Device fails to save settings when setting up on the Cloud

GT_06

  • The wireless network which the WiFi Devices are connected to requires an active internet connection.  You can check connectivity to the Cloud by connecting the PC or another device to the wireless network and opening the comark.wifisensorcloud.com site in your browser.
  • Some routers/corporate firewalls may block outbound connections to the Cloud.  Refer to the knowledge base article Help with Network Requirements and Settings for further information.




Cloud Sign-In problems using the PC Software

I cannot Sign-In to my Cloud Account from the PC software.

GT_07

If you are unable to sign in to your Cloud Account through the PC software please check that:

  • Your PC has an active internet connection and you are able to view the Comark Cloud website using your browser.
  • You have activated your Cloud Account by following the link in the Sign-Up email
  • You are using the correct email address and password




Loss of Connection

My WiFi Device loses connection to the PC or the Cloud.

Generic (applies to both Cloud and PC connected WiFi Devices)

  • Check the signal strength of the wireless network (press button on WiFi Device 3 times to view signal strength) and consider moving the WiFi Device or access point/router
  • Try restarting your wireless access point or router
  • If your wireless network consists of multiple access points with the same SSID the WiFi Device may not be connecting to the access point with the strongest signal. Refer to Help ‘Comark RF300 PIB Help with Network Requirements and Settings’.
  • If you are not using the latest firmware version, consider updating your WiFi Device.

Cloud

  • Check your internet connection. Can other wireless devices connect to the internet?
  • Consult your IT Administrator, there may be network authentication or corporate firewall rules which are preventing the WiFi Device from communicating.  Detailed information on how the WiFi Device communicates can be found in Help Guide 3.

PC Software

  • In the event that the WiFi Device loses connection with the PC software it uses UDP broadcast packets to attempt to discover this.  Some wireless networks are configured to block UDP broadcast.  Check your access point configuration.  Alternatively configure your PC and WiFi Devices with static IP Addresses (see Help ‘Comark RF300 PIB Help with Network Requirements and Settings’)

Resource limitations on the PC running the WiFi Sensor Software may cause the processing of messages from the WiFi Devices to take an excessive amount of time.  This may cause the WiFi Devices to lose connection.  Try closing some programs or restarting your PC.  Some Firewall and Anti-Virus/Security software may also cause issues here.


Miscellaneous Items

If you are using the PC software and the ‘Next’ button is missing on the Alarms page, ensure your font scaling is set to 100%.

If the software doesn’t run on XP, Vista, or Windows 8 you may need to install .NET 3.5 SP1 framework.


pdf_button

7th December 2016
Help checking my comark.wifisensorcloud.com Server Settings

Help checking my comark.wifisensorcloud.com Server Settings

This knowledge base article shows how to check or change the Comark Cloud server settings in the Comark Diligence WiFi Software.

To check your Comark Cloud Server settings

  • Start the Diligence WiFi Software on your PC

Cloud_01

  • At the Home screen, press the Ctrl, Alt and S keys together. i.e. hold down the Ctrl and Alt keys and press S

Cloud_02a Cloud_02b Cloud_02c

If when pressing Ctrl+Alt+S you get a Support Information Window on your HP or Compaq PC, see the section below.


HP and Compaq desktop computers are designed to display System Information when pressing Ctrl+Alt+S keys simultaneously. However, this key combination is needed by the WiFi Sensor Software, in order to display the Cloud Server Settings window.

To change or disable the key combination associated with the HP or Compaq System Information window click Start All Programs , “HP Help and Tools

For Compaq computers, right-click either Compaq Support Information or Compaq Presario Support Information, and click Properties

For Pavilion computers, right-click either HP Support Information or HP Pavilion Support Information, and click Properties

Click inside the Shortcut Keys field, and either delete the contents of the Shortcut Keys (None) or change it to another key combination that you are not using in other software programs. For example, if you want to change the key combination to Ctrl+Alt+Z, select the Shortcut Key field and press all three keys at the same time.

CTRL_ALT_S_02

You can download a copy of this information by clicking here.


  • The Cloud Settings will be displayed….

Cloud_03

  • If the settings are exactly as shown, you don’t need to change anything, click Cancel.
  • Only if necessary, edit the settings. Double check your entries and click Save.
  • Do not change the Listener Port unless instructed to do so by our support team.

Comark operates a number of Cloud servers to accommodate the needs of our customers. In almost all cases the default Cloud settings will be correct for your application.

These settings are persistent and will be remembered when you close the software, or install a software upgrade.

pdf_button

27th March 2015
Help with Restart or Factory Reset

Help with Restart or Factory Reset

This knowledge base article refers to the RF300 Diligence WiFi Data Loggers, including the RF324 Alarm Unit.


How do I Restart or Reset my RF300 Diligence WiFi device?

Under normal circumstances, you do not need to reset your RF300 Diligence WiFi Device. However you may be instructed to do this by our support team to recover a Device which is not working properly, or return it to its factory state.


Restart

Performing a Restart on the WiFi Sensor will restart the internal firmware, retaining all configuration and network settings. The Sensor will disconnect from the wireless network, and immediately enter a low power sleep mode. It can take up to 30 minutes for the Sensor to re-connect and synchronize after a Restart. Under normal circumstances the Sensor will synchronize within 15 minutes. Once communication is re-established the Sensor returns to its normal transmission rate. A Restart will cause a new recording session to be started.

To perform a Restart on an RF313-TH Data Logger

RF313-TH_F_23c_SQv2_250

  • From the Sensor Home screen
  • Press and hold the button for 10 seconds
  • Release when the LOW symbol starts to flash.

RF313-TH_F_23c_SQv2_250_Restart_01



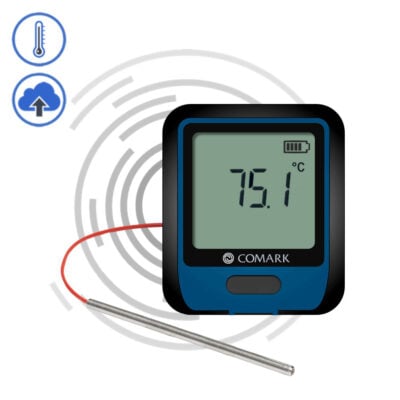

To perform a Restart on all other RF31x Data Loggers (RF311-T, RF313-TP, RF314-TC)

RF311-T_F_3.0c_SQv2 RF312-TP_F_-18.0c_SQv2_250  RF314-TC-F-w_UK_SQ250

  • From the Sensor Home screen
  • Press and hold the button for 10 seconds
  • Release when the LCD shows rSt

RF311-T_F_3.0c_SQ250_FirmVers_01



To perform a Restart on the RF324 Alarm

  • Press and hold the button for 10 seconds
  • Release when the LEDs start to cycle.

RF324-F_SQ






Factory Reset

Performing a Factory Reset on the WiFi Sensor will clear all internal configuration and network settings. The Sensor will disconnect from the wireless network, and all WiFi activity is stopped. When you want to use your Sensor again, you’ll need to connect the Sensor to a wireless network and re-configure it using the WiFi Sensor Software.

You should perform a Factory Reset prior to shipping the Sensor or before storage.

To perform a Factory Reset on an RF313-TH Data Logger

RF313-TH_F_23c_SQv2_250

  • From the Sensor Home screen
  • Press and hold the button for 20 seconds
  • Release when the LCD shows FArS

RF311-T_F_3.0c_SQ250_Reset_01



To perform a Factory Reset on all other RF31x Data Loggers (RF311-T, RF313-TP, RF314-TC)

RF311-T_F_3.0c_SQv2 RF312-TP_F_-18.0c_SQv2_250  RF314-TC-F-w_UK_SQ250

  • From the Sensor Home screen
  • Press and hold the button for 20 seconds
  • Release when the LCD shows FArS

RF311-T_F_3.0c_SQ250_Reset_01



To perform a Factory Reset on the RF324 Alarm

RF324 Audible and Visual Alarm

  • Press and hold the button for 20 seconds.
  • The LEDs will cycle. When the LEDs go out, release the button



pdf_button



Help with updating the firmware of my RF300 Data Loggers

Help with updating the firmware of my RF300 Data Loggers

This knowledge base article refers to the RF300 Diligence Data Logger Firmware Updater. The software is compatible with Windows 7 & 8 and 8.1.


How do I update the firmware in my RF300 Diligence Logger?

The Firmware Updater is installed along with the WiFi Sensor Software. Find a link to it in your Start menu.

Firmware_Updater_01



Start the WiFi Sensor Firmware Updater and follow the on-screen instructions.

Carefully read the warning message to avoid losing valuable data!

Firmware_Updater_02



Connect the RF300 Logger you want to update using the USB cable supplied.

Firmware_Updater_03b



The Firmware Updater will automatically detect your Device and connect to it.

Firmware_Updater_04

If your Device is not detected, do the following

  • Check that the USB cable is connected securely at the WiFi Device and PC.
  • Ensure that the WiFi Sensor Software is not running.
  • Try unplugging then re-connecting the USB cable.

Update Firmware – This page shows details of the connected WiFi Device, MAC address, current Firmware version, hardware version and system summary.

Follow the 4 simple steps to update your WiFi Device.

Firmware_Updater_05

1

Updating the Firmware in your WiFi Device will cause it to be Factory Reset, disconnected from the WiFi network and cleared of all internal settings. Therefore, when you want to use your WiFi Device again, use the WiFi Sensor Software to connect it to a wireless network and set it up. If you have used the Device previously and data has been stored on the local PC, we recommend that you delete the Device from the WiFi Sensor Software and Archive any data you need to keep before proceeding. If you have used the Device previously and data has been stored on the Comark Cloud, continue with the Firmware Update; archiving of the existing Device will be done automatically.

2   If you haven’t already done so, please download the latest firmware for your Device. Download the zip file to a known location on your PC.

3Return to the Firmware Updater Software. Click on BROWSE. Locate your downloaded files in the folder as above, and click Open.

Firmware_Updater_04b



Firmware_Updater_07



4

Click on UPLOAD to start updating the firmware



Firmware_Updater_08

When Updating is complete the WiFi Device will restart

Firmware_Updater_09

The Firmware Updater Software will check the update

Firmware_Updater_10

Your Firmware Update has been completed. Click OK to finish.

When you want to use your WiFi Device again, use the WiFi Sensor Software to connect it to a wireless network and set it up.


pdf_button

Help with Completely uninstalling the Diligence WiFi Sensor Software

Help with Completely uninstalling the Diligence WiFi Sensor Software

This knowledge base article refers to the Comark Diligence WiFi Software


How do I completely remove the Diligence WiFi Software from my PC?

  1. Uninstall the Diligence WiFi Software ..
  • Windows XP/Vista: use Control Panel | Add or Remove Programs
  • Window 7: use Control Panel | Programs
  • Windows 8: search Programs and Features.

Locate the Diligence WiFi Software in the list and select Remove or Uninstall.



  1. Completely remove the folder Program Files\Comark\Diligence WiFi.

This might be Program Files (x86) \Comark\Diligence Wifi on some operating systems.

  1. Completely remove the folder My Documents\Diligence WiFi.

This might be Documents\Diligence WiFi on some operating systems, or ..\Diligence WiFi – Professional on some installations.

  1. Delete the file My Documents\config.wft.

This might be Documents\config.wft on some operating systems.



The software and any related data is completely removed.




pdf_button



Help with finding the Firmware Version of your RF300 Data Logger

Help with finding the Firmware Version of your RF300 Data Logger

This knowledge base article will show you how to check the version of Firmware in your RF300 Diligence WiFi Data Logger.

The firmware version comprises two parts, and is usually reported as shown:

Firmware_Vers_01




How do I find the firmware version installed in my RF300 Diligence WiFi Logger?

PC Software

You can check the firmware version when setting up your Sensor using the WiFi Sensor Software on your PC.

The full firmware version is displayed on the Network Selection screen.

Firmware_Vers_02

  • Run the WiFi Sensor Software
  • Connect the Sensor to the PC using the USB cable supplied
  • Click on Set-Up Device, and select On This PC or On The Cloud
  • The Network Selection screen will be displayed
  • You can click Cancel if you don’t want to proceed with Set-Up






Firmware Updater Software

The Application and System Firmware versions are displayed in the Device Parameters when the device is connected.

  • Run the Firmware Update Software
  • Connect the Sensor to the PC using the USB cable supplied
  • The Sensor will be detected automatically, and the Device Parameters displayed

Firmware_Vers_03




On the Comark Cloud

  • Sign-In to your Comark Cloud account
  • Select the Sensor on the Device
  • Click on Properties
  • The full version is displayed

Firmware_Vers_04




On the Device

  • Press and hold the button for 10 seconds
  • When the button is released the Application Firmware version is briefly displayed






Help with McAfee All Access Software

Help with McAfee All Access Software

This knowledge base article refers to the McAfee All Access Software, although these instructions may also apply to other McAfee products.


How do I allow the RF300 Diligence WiFi Sensor Software to communicate through my PC firewall?

Open your McAfee application.

  1. Click Web and Email Protection.
  2. Click Firewall.
  3. Click Internet Connections for Programs drawer. NOTE: Depending on the version of the McAfee software you have installed, this may be called Program Permissions.
  4. Scroll to the bottom and click Add.
  5. Click Browse and locate the folder ..

C:\Program Files (x86)\WiFi Sensor Software\

On some systems the folder may be .. C:\Program Files\WiFi Sensor Software\

  1. Select the program WiFi Sensor Software.exe and click Open.
  2. Set the access type to Full in the Access: drop-down menu.
  3. Click Save.




How do I open the ports required by the RF300 Diligence WiFi Sensor Software?

  1. Open your McAfee Windows Security software
  2. Click Web and Email Protection
  3. Click Firewall
  4. Click Ports and System Services
  5. Click Add
  6. Enter the WiFi Sensor Software of the application with the System Service Name field. The exact name is unimportant. Scroll down
  7. In the Local TCP/IP Ports: field enter 10080
  8. In the Local UDP Ports: field enter 1024, 8010
  9. In the Open ports to: drop-down menu, select All PCs
  10. Click Save






pdf_button



Help with Network Requirements and Settings

Help with Network Requirements and Settings

This knowledge base article offers guidance on Network Requirements and Settings for the RF300 Diligence WiFi sensor products.


What Network Requirements are there to use the RF300 Diligence WiFi Sensor Products?

The RF300 Diligence data logging sensors require an 802.11b compatible network and support the following encryption methods:

  • No authentication or encryption – not recommended
  • WPA/WPA2 Pre-shared key (PSK) — recommended
  • WPA/WPA2 Enterprise – see below for more information
  • WEP – 64bit or 128bit encryption. Requires WEP passkey in hexadecimal rather than ASCII passphrase.

For Loggers sold before July 2016 The WiFi Sensors will only operate on an 802.11b network using data rates of 1,2,5.5,11 Mb/s. Wireless access points must be configured to allow 802.11b traffic (not g or n only modes).

For Loggers sold from July 2016 onwards Comark has upgraded the Diligence WiFi Data Logger range from ‘b’ (IEEE 802.11b) to ‘bgn’ (IEEE 802.11b/g/n) WiFi compatibility.


How do I tell them apart from the old versions?

Telling them apart is straightforward. The part number for the logger can be found on the rear of the logger

along with the MAC Address which, for all ‘bgn’ enabled products is 98:8B:AD:20:00:00 -> 98:8B:AD:2F:FF:FF


By default the WiFi Sensors will obtain an IP address via DHCP, this is normal for most networks.  The IP address can also be manually configured – see below for more information.

When using the PC software the sensors must be connected either wired or wirelessly to the same network and use the same IP address range as the PC.

If the software is running on a virtual machine it may be given a different IP address to the host PC. It will need to be given an IP address that is in the same range as the WiFi Sensors.

If you have multiple network connections on the PC, the software may not be able to automatically choose the one which the WiFi Sensors are connected to – see below for more information.

When using the Comark Cloud service the sensors and the PC do not need to be on the same network but both require an internet connection during setup.

Wireless access points must have wireless isolation or guest modes disabled to enable communication between devices.

Corporate networks may need additional configuration to allow communication between the sensor and the PC.

MAC Address filtering on the access point must be disabled or the address of the sensors included in the allowed list.  The MAC Address can be found on the serial number label on the back of the unit.


How do the RF300 Diligence WiFi Sensor Products communicate on the network and what firewall settings may be required?

The WiFi Sensors communicate using different methods depending on whether they are connected to a local PC or to the Comark Cloud.

All communication is initiated by the WiFi Sensors themselves.  While not communicating, the devices are in a low power mode with the radio module turned off.


Local PC

The Firewall must allow full access to the WiFi Sensor Software, failure to do so will prevent the sensors from communicating.

From Application Firmware version 3.xx onwards, the WiFi sensors primarily use TCP port 10080 to communicate with the PC Software.  In addition they use UDP broadcast packets on UDP ports 1024 and 8010 for alarm notifications and discovery of a PC once TCP connection has been lost.  Any firewalls running on the PC will need the TCP and UDP ports open for correct operation.


Cloud Service

In order to set up the WiFi Sensors on the Cloud, both the PC Software and the Sensors require an internet connection.  The PC Software connects to the Cloud via a HTTPS connection in order to set up the sensor.  This is only required during initial configuration.  The WiFi Sensors communicate with the Cloud using TCP port 14354.  Most domestic routers do not have restrictions on outbound TCP connections but corporate networks may require an exception in the router/firewall.


UDP Broadcast

Communication between the WiFi Sensors and the RF324 WiFi Alarm unit is achieved using UDP broadcast as the sensors do not have knowledge of how many RF324’s are listening on the network.  It is also used by the WiFi Sensors when running in local PC mode when TCP connection to the PC is lost.  This is in order to recover from the situation where the IP address of the sensor may have changed.  In order to reduce network traffic, many managed wireless networks have UDP broadcast traffic filtered by default which may inhibit the operation of the WiFi Devices.  On Aruba managed networks this setting is called ‘Drop Broadcast and Multicast Traffic’.


My PC has multiple network connections, is this a problem?

When using the WiFi Sensors with the PC software, they must be on the same network in order to communicate.  If the PC has multiple network connections e.g. wired and wireless, the WiFi Sensor Software may not be able to automatically select the correct network connection.

GT03

On the Wireless Network selection screen, click on the green antenna symbol on the top left of the window.  This will cause a drop-down box to appear on the bottom left.  Select the network adapter which corresponds to the same network as the WiFi Sensors.  Then continue the setup as normal.


How do I configure my WiFi Sensors with a static IP Address?

If you do not have a DHCP server on your network or wish to manually assign an IP address, these settings are found on the Advanced Network Options screen.

Net_01

Ticking the box on the Wireless Network Selection screen then clicking ‘Next’ will take you to the advanced options.

Net_02


Can I connect my WiFi Sensors to a wireless network with Enterprise Authentication?

Enterprise Authentication is supported on devices with System Firmware of 2.3.12 and above.

We support the following Authentication Methods:

  • PEAP/MSCHAPv2
  • FAST
  • TTLS

Selecting an Enterprise network will prompt entry of a username and password:

Net_03

You also need to select the authentication type in the dropdown box.  Consult your IT Administrator if you are unsure what type of enterprise network you have.

We do not support the following types which require a client certificate to be installed:

  • TLS
  • GTC
  • LEAP




My Wireless Network doesn’t appear in the list, what could be causing this?

If you have refreshed the network list several times but your network does not appear, there are several possible causes:

The wireless network could be out of range of the sensor, try moving the sensor and the access point/router closer together and trying again.

The wireless network name (SSID) could be hidden.  Either change the access point or router configuration to make the SSID visible or use the option to connect to Join Other Network and enter the details manually.

Net_04

The SSID may contain invalid characters.  The wifi sensors are unable to handle certain special characters such as spaces or commas in the SSID or trailing spaces at the end.  You may need to change the SSID of the network.  This also applies to passwords.

The wireless network may not have the correct modulation or data rates enabled.  The WiFi sensors require 802.11b to be enabled.


I am getting an ‘Error Saving’ message at the end of the set-up process for my WiFi Sensor, what could be causing this?

At the end of the set-up process, the WiFi Sensors transmit a test message to the PC Software or to the Cloud in order to confirm that the configuration is correct.  This error message most often due to the test connection failing.




Local PC

The most common reason for the test connection to fail is the packets being blocked by a firewall on your PC.  Please follow our firewall configuration guides to ensure that you have the required ports open.

In order to communicate, the PC must be on the same network as the wireless device which the sensors are connected to.  Another cause of the test connection failing can be if you have multiple network adapters on your PC, such as a wired and wireless connection or a USB 3G Modem connected.  Please see the help section on multiple network adapters.




Cloud Service

When connecting a sensor to the Cloud, the message is transmitted across the internet to the Cloud Server.  This requires the sensor to be able to access the internet via the wireless network on TCP Port 14354.  Most domestic internet routers do not have restrictions on outbound TCP connections by default.  Users on corporate networks may need to contact their IT Administrator to ensure that TCP Port 14354 is open for outbound traffic.




I have multiple access points with the same name (SSID), could this cause problems with the WiFi Sensors?

Devices with System Firmware of 2.3.12 or above are capable of selecting the strongest access point with the SSID it is configured to use.  If you are moving a sensor between the coverage of two access points, it may lose connection temporarily with the PC software or the Cloud while it finds the new access point.

Devices with previous versions of the System Firmware will chose the Access Point with the lowest channel number.  If you have multiple Access Points with the same SSID and are experiencing issues with a device showing a low signal strength despite being close to an access point it may be trying to connect to one further away.  In order to work around this issue it is possible to lock a WiFi Sensor to the MAC Address of an Access Point.  This option is found on the Advance Network Configuration screen.

Net_01

Ticking the box on the Wireless Network Selection screen then clicking ‘Next’ will take you to the advanced options.

Net_05

Enter the MAC Address of the access point you want to lock the sensor to.


There is an Enterprise Level Firewall (eg Sonicwall, Fortigate) on our network, will this stop the WiFi Sensors working on the Cloud?

The answer to this depends very much on the configuration of the Firewall.  If the Firewall is configured to allow unrestricted outbound traffic, it should not cause any issues.

Some corporate firewalls are configured to only allow traffic from known or authenticated clients, eg using Windows Domain Login.  As the WiFi Sensors are unable to respond to requests to identify themselves, the Firewall may not allow access through to the internet.  In this case, an exception will need to be added for the IP or MAC Address of the WiFi Sensor. Please consult your IT Administrator.


pdf_button

26th March 2015
Help with Windows Firewall

Help with Windows Firewall

This knowledge base article refers to the Windows Firewall and covers Windows 7 and 8.


How do I allow the RF300 Diligence WiFi Sensor Software to communicate through my PC firewall?

Open your Windows Firewall

Windows_Firewall_01

  1. In the left pane, click Allow a program or feature through Windows Firewall.
  2. Click Change Settings. If you’re prompted for an administrator password or confirmation, type the password or provide confirmation.
  3. Select the check box next to the program you want to allow, select the network locations you want to allow communication on, and then click OK.




How do I open the ports required by the RF300 Diligence WiFi Sensor Software?

Open your Windows Firewall

  1. In the left pane, click Advanced Settings. If you’re prompted for an administrator password or confirmation, type the password or provide confirmation.
  2. In the Windows Firewall with Advanced Security dialog box, in the left pane, click Inbound Rules, and then, in the right pane, click New Rule.
  3. Select Port and click
  4. Select TCP and Specific Local Port and type 10080 in the box.
  5. Click Next and select Allow the connection
  6. Click Next and tick the required boxes
  7. Give the rule a name and click Finish

Follow the same rules for UDP ports 1024 and 8010








pdf_button



Help with Symantec Firewall

Help with Symantec Firewall

This knowledge base article refers to Symantec Norton Internet Security, although these instructions may also apply to other Symantec products.


How do I allow the RF300 Diligence WiFi Sensor Software to communicate through my PC firewall?

Open up Norton Internet Security

  1. In the main window, click Settings.
  2. In the Settings window, under Detailed Settings, click Firewall.
  3. On the Program Rules tab, select WiFi Sensor Software.
  4. In the Access drop-down list for the program entry, click Allow.

Click Apply.


How do I open the ports required by the RF300 Diligence WiFi Sensor Software?

Open Norton Internet Security.

Choose the Settings menu option on the control panel and click Configure in the Smart Firewall menu tab.

  1. Select Configure under the Advanced Settings section of the menu followed by the Add menu button. Click Allow and Next in the Add Rule Wizard.
  2. Choose the Only Communications that match all types and ports listed below menu option followed by the Add button
  3. Click Individually specified ports and enter the port numbers being blocked by Norton Internet Security. You will need to open up TCP port 10080 and UDP ports 1024 and 8010. After entering the port number, select the OK and Next menu buttons.
  4. Enter a name for the new firewall rule followed by the Next and Finish menu buttons and exit Norton Internet Security to complete opening the desired port.



pdf_button



Help with ZoneAlarm Firewall

Help with ZoneAlarm Firewall

This knowledge base article refers to ZoneAlarm Pro Antivirus and Firewall


How do I allow the RF300 Diligence WiFi Sensor Software to communicate through my PC firewall?

Open ZoneAlarm Pro Antivirus and Firewall

  1. In the Firewall tab, click Settings for the Application Control category
  2. Click View Programs
  3. Click Add
  4. Select WiFi Sensor Software
  5. Click Open

How do I open the ports required by the RF300 Diligence WiFi Sensor Software?

Open ZoneAlarm Pro Antivirus and Firewall

  1. Select Firewall.
  2. In either the Trusted Zone or Public Zone area, click Custom. The Firewall settings dialog appears.
  3. Scroll to the security level (High or Medium) to which you want to add ports.
  4. Select the desired port type: incoming UDP, outgoing UDP, incoming TCP, or outgoing TCP.
  5. You will need to unblock TCP port 10080 and UDP ports 1024 and 8010

Click Apply, then click OK




pdf_button



Battery Life Expectation

Battery Life Expectation

This article offers guidance on battery life for the RF300 Diligence WiFi sensor products


How long will a fully charged battery last in my RF300 Diligence WiFi sensor?

The RF300 Diligence WiFi data logging sensors are powered by quality LiPo batteries. The battery life of the sensor is dependent on use.  Transmitting data uses a lot of battery power. By increasing the time between transmissions the battery will last longer. See the table below.

Battery_Life_Table

The product will arrive partly charged but you should charge it for 24 hours before use for optimum performance. The battery can be recharged using a PC, a USB wall adapter, or a portable USB battery pack using the USB lead provided. It can also be permanently powered by a USB wall adapter or USB battery pack. Readings may be affected for some sensor types, while the internal battery is being charged. However once charged, continued connection of the charger will have no effect.

Battery life is dependent on a wide range of parameters including:

  • Transmission period.
  • Operating temperature. (Lower extremes will have a significant effect).
  • WiFi encryption method.
  • WiFi encryption key rotation frequency (determined by the AP/router).
  • Signal strength between router and WiFi device.
  • Presence volume and type of WiFi traffic from other devices.
  • Sample rate.

Regardless of whether you have chosen to store your data on the PC or on the Comark Cloud, optimum battery life is achieved when each data transmission from the WiFi sensor is successfully received by the host. If the PC Software is not running, the WiFi network is down, or for any other reason connection between sensor and host is lost, the sensor attempts to periodically re-establish communications until connection is made and data is synced. To ensure optimal battery life we recommend that wherever possible, a wireless connection to the host is permanently maintained.

Battery_Life_Diagram_01


What is the service life of the battery inside my RF300 Diligence WiFi Sensor?

It is generally accepted, that the service life of a battery has come to an end when it reaches 80% of its original capacity (of course the battery will continue to work satisfactorily beyond this). Our products use a quality LiPo (Lithium Polymer) battery which, under normal conditions of operation, charging and storage, will provide a service life in excess of 300 charge/discharge cycles.

For example, if you recharge your sensor every three months, the battery service life would be at least 75 years.


How should I store my RF300 Diligence WiFi Sensors?

If you need to store your WiFi sensors for any length of time, we recommend the following guidelines in order to preserve battery capacity..

  1. Do not exceed the acceptable storage temperature range of -20 to +30°C. Storage at room temperature is OK, although more battery capacity is preserved at lower temperatures.
  2. If the WiFi symbol is shown, flashing or fixed, in the top left corner of the LCD then the WiFi sensor must be factory reset by pressing and holding the button for 20 seconds, prior to storage.
  3. The battery should be part-charged to 40-50% capacity prior to storage. This can be achieved by charging the WiFi sensor for approximately 4 hours from flat. We do not recommend storing a fully charged or fully discharged WiFi sensor.
  4. For long-term storage, we recommend that batteries are periodically topped-up to maintain a nominal 40-50% capacity. We recommend recharging for 3 hours every 6 months.

Why is the battery in my RF300 Diligence WiFi Sensor not charging?

It is safe to recharge the WiFi sensor between 0 and 40°C. A safety feature inside, prevents charging when the internal temperature is outside this range. This ‘charging error’ condition is indicated when both MIN and MAX are shown together on the LCD.

Battery_Life_Diagram_02b


How do I ensure that I get the best possible battery life from my RF300 Diligence WiFi Sensors?

  • Do not exceed the acceptable operating temperature range of -20 to +60°C. Lower temperatures will significantly reduce battery capacity.
  • Choose the longest Transmission Rate suitable for your application. Remember, you will receive alarm notifications immediately, regardless of your Transmission Rate setting.
  • Wherever possible avoid deep discharging your sensor. Recharge your sensors while they still have some charge left on a schedule to suit you.
  • If storing your sensors, do not exceed the acceptable storage temperature range of -20 to +30°C and maintain a 40-50% charge.
  • Wherever possible maintain a permanent wireless connection to the host (PC or Comark Cloud).



pdf_button



24th March 2015
