RF512M Wireless Temperature Transmitter Meshing Kit

Part No: RF512M (3618311)

From: £285.71 (ex. VAT)

RF512M Wireless Temperature Transmitter Meshing Kit for use for temperature measurement in RF500 Wireless Monitoring Systems.

  • Integral Thermistor Sensor Range: -30°C to +70°C / -22°F to +158°F
  • External Sensor Range: -40°C to +125°C / -40°F to +257°F
  • Selectable Scales °C/°F
  • Warranty: See individual components

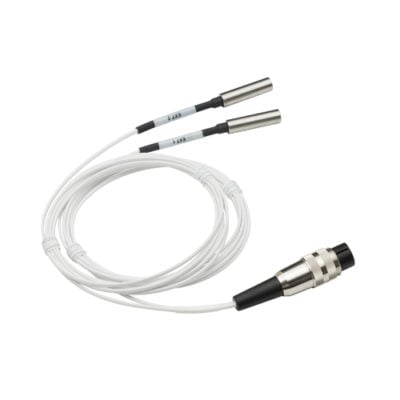

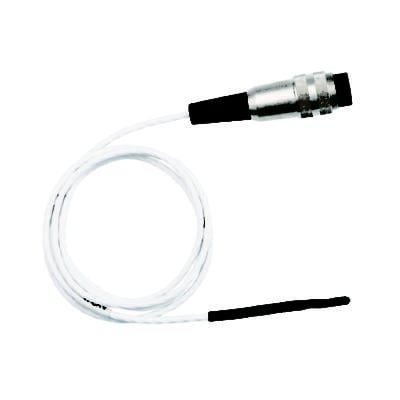

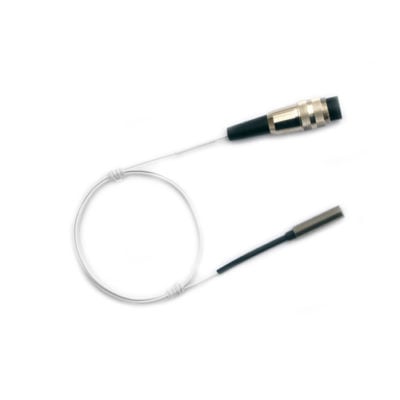

Add a Probe + UKAS

RF512M Wireless Temperature Transmitter Meshing Kit
RF512 Wireless Temperature TransmitterWireless Transmitter ConnectionsRF504 High Gain AntennaRF520 Mains Power Supply UnitRF520 Mains Power Supply Unit Connector

RF512M Wireless Temperature Transmitter Meshing Kit

RF512M Wireless Temperature Transmitter Meshing Kit for use for temperature measurement in RF500 Wireless Monitoring Systems.

Mains power enables transmitter to form part of RF500 mesh network backbone.

Integral temperature sensor plus connectors for two external temperature sensors and an external door sensor.

Kit includes

  • Temperature Transmitter
  • High Gain Antenna
  • Mains Power Supply Supply Unit

Features

  • LCD screen for local temperature display at point of measurement
  • LEDs allow checks of active/alarm indication in situ
  • Selectable scales °C/°F
  • BioCote Antimicrobial Protection on surfaces inhibits growth of bacteria, mould and fungi providing an extra line of defence in high-risk environments

This Product is available in the following variants:

  • RF512M (3618311)
  • RF512M/EU (3618327)
  • RF512M/US (3063408)
  • RF512M/AUS (4180941)



Technical Specifications

NameValue
Temperature Measurement Range - Integral Thermistor Sensor-30°C to +70°C / -22°F to +158°F
Temperature Measurement Range - External Sensor-40°C to +125°C / -40°F to +257°F
Scales°C and °F
System Accuracy - Analog Input (23°C) / (73°F)0.3% of reading
System Accuracy with Integral Thermistor (0°C to +70°C / -32°F to +158°F)±0.5°C / ±0.9°F
System Accuracy with External Thermistor (-20°C to +70°C / -4°F to +158°F)±0.5°C / ±0.9°F
Temperature Thermistor Full Range±1°C / ±1.8°F
Resolution Temperature0.1°C / 0.2°F
Door Sensor (Resolution)7.5 seconds
Operating Temperature Range0°C to +50°C / 32°F to 122°F - 10-90% RH - Non-Condensing
Storage Temperature-40°C to +85°C / -40°F to +185°F
RF Frequency2.4GHz using IEEE 802.15.4
Standard AntennaExternal, removable, Omni directional with pivot. Length: 90mm from pivot
High-Gain Antenna (Included)Length: 235mm from pivot
Radio RangeTypically 50 metres indoors
Clock Accuracy20ppm (1 minute/month) at 25°C / 77°F
Logging Memory32000 records
Logging FrequencyProgrammable between 1 minute and 60 minutes
Monitoring Frequency1 Minute
LEDsRed - Warning / Green - External Power
Case MaterialOver Moulded food safe clear Polycarbonate with BioCote® antimicrobial
Environmental ProtectionCase enclosure designed to meet IP67 BS EN 60529
Battery TypeReplaceable Lithium 'C' Cell - Saft LSH14 Light or Saft LS26500 (Restricted for transport)
Battery LifeUp to 3 years
DimensionsL 134mm x W 83mm x D 34mm
Weight270g
Mains PSU (Included)Optional Mains PSU Part No RF520 (100-240VAC 0.3A 50/60Hz)
Humidity 10-90% RH±3%
Maximum Probe Lead LengthNot to exceed 30m
Pt100 Connection Type4-Wire
Pt100 Sensor Drive Current400μA Nominal
WarrantyPlease refer to individual components
