Diligence WiFi Penetration Probe Plus (2m Lead)

Part No: RFPX200JPLUS (4380291)

£52.30 (ex. VAT)

The RFPX200JPLUS Diligence WiFi Penetration Probe Plus is a (High Accuracy 'Plus' Specification Thermistor) Penetration Probe for use with the RF312GLYCOL and RF312DUALPLUS Diligence WiFi Temperature Data Loggers.

  • Temperature Range: -40°C to +125°C / -40°F to +257°F
  • Sensor Type: PST (Thermistor)
  • Connector Type: 3.5mm Jack Plug



RFPX200J+ Diligence WiFi Penetration Probe Plus

Diligence WiFi Penetration Probe Plus

The RFPX200JPLUS Diligence WiFi Penetration Probe Plus is a (High Accuracy ‘Plus’ Specification Thermistor) Penetration Probe for use with the RF312GLYCOL and RF312DUALPLUS Diligence WiFi Temperature Data Loggers only. The probe is connected to a 2.0m lead.





rfpx200j



The RFPX200JPLUS Diligence WiFi Penetration Probe is fitted with a 3.5mm Jack Plug connector, to provide a quick and easy connection to your Data Logger.


Penetration Probes Explained

All of the Penetration Probes for the RF312xx Diligence WiFi Temperature Data Logger are designed to be robust, yet at the same time unobtrusive. That is why the standard Penetration Probes for RF312xx do not come with probe handles.

The Penetration Probes for RF312xx Diligence WiFi Temperature Data Logger, come in the form of a stainless steel pointed shaft, as shown below.

RFPX200_Edit

The Penetration Probes are designed to be inserted into samples so that the temperature recorded will accurately represent the sample. However, unlike the Air Probes, the Penetration Probes potentially are destructive to the sample, i.e. it cannot be used as intended.

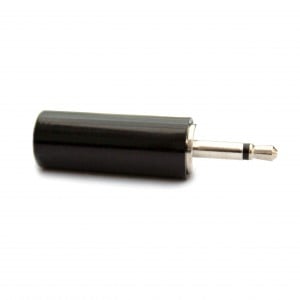

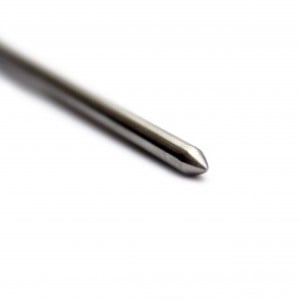

All RF300 Diligence WiFi Penetration Probes are fitted with a 3.5mm-Jack Plug Connector and a stainless steel Pointed Penetration End end, as shown below.

RFJACK_01RFPP100_04

Technical Specifications

NameValue
Lead Length2.0m
Connector Type3.5mm Jack Plug
Sensor TypePST (High Accuracy 'Plus' Specification Thermistor)
Stem Length75mm
Stem Diameter4mm
Temperature Range-40°C to +125°C / -40°F to +257°F
Wire TypeFlat-Twin
Lead MaterialPVA
